Zinc Coated Steel Punching Mold for Vehicle Radiator Header Plate

Name: Zinc Coated Steel Punching Mold for Vehicle Radiator Header Plate
Brand: WONDERY
Price: 6 USD

Quality Zinc Coated Steel Punching Mold for Vehicle Radiator Header Plate wholesale

Place of Origin : Zhejiang, China

Brand Name : WONDERY

Model Number : ZBM-ZG

MOQ : 1

Price : $6,500

Shaping Mode : Punching Mold

Product Material : Steel

Weight : 350KG

Steel Plate Thickness : 0.9mm

Steel Plate Material : Zinc Coated Steel

Mold Material : Cr12

Mold Plate Material : 45# Steel

Mold Delivery Time : 15 days

Aluminum Pipe Size : 8mm*0.38mm

Hole Distance : 18.5mm

Hole Row Number : 21 rows

Header Plate Material : Zinc Coated Steel Plate

Header Plate Thickness : 0.9mm

Mold Type : Punching Mold

Mold HS Code : 8207300090

Contact Now

Zinc Coated Steel Punching Mold Steel Plate Header Plate Mould For Vehicle Mechanical Radiators

Product Application

The mechanical radiator header plate mould is customized based on the drawing or sample plate provided by the customer. The radiator header plate mould is based on each model. Aluminum header plate mold, header plate die

Technical Parameters of Radiator Header Plate Mould

1) header plate mould material: 45# mold bottom plate;
2) punching blade and matrix material: Cr12 material;
3) mould type: punching mold;
4) mould hs code: 8207300090

5) aluminum pipe size: 8mm*0.38mm;

6) hole to hole distance: 18.5mm;

7) hole row number: 21 rows;

8) header plate material: zinc coated steel plate;

9) header plate thickness: 0.9mm steel plate.

Zinc Coated Steel Punching Mold for Vehicle Radiator Header Plate

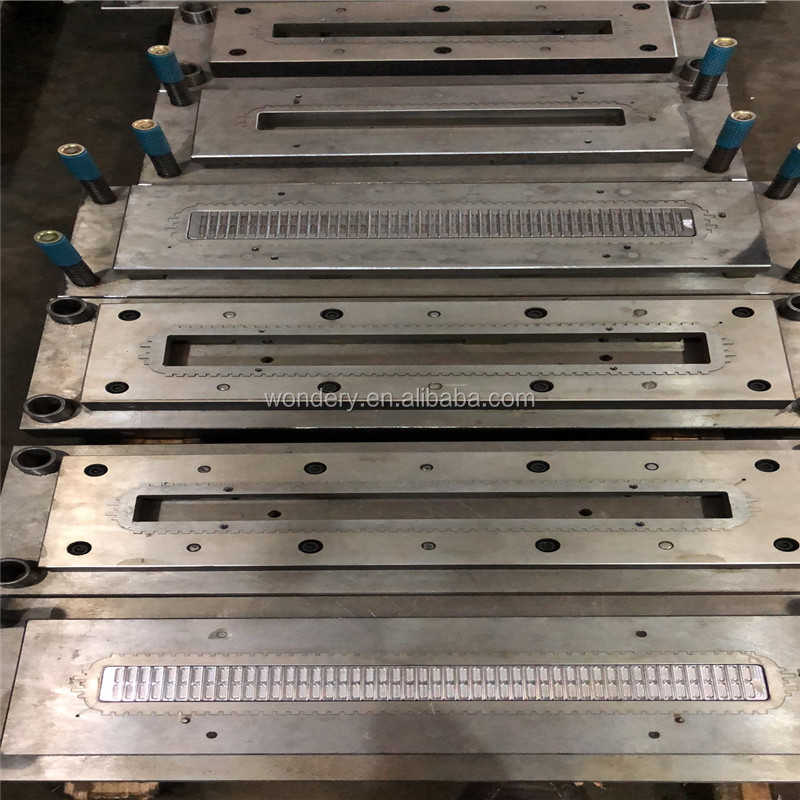

Detailed Images

Wuxi Wondery Industry Equipment Co., Ltd. is a professional supplier of industrial machines. Currently the company mainly supplies the equipment for the automobile industry, household air conditioner industry, engineering vehicle industry, power generation plant industry, train industry, ship industry, etc. Our main products are: radiator making machines, aluminum fin machine, aluminum radiator core builder machine, aluminum radiator plastic tank clinching machine, aluminum radiator brazing furnace, aluminum header pipe punching machine, aluminum flat tube straightening and cutting machine, high speed fin press machine, aluminum/copper pipe straightening and cutting machine, tube expander machine, automatic bending machine, progressive fin die, metal punching die, etc. Established in year 2008, the company has gained rich experiences in development and design, quality control, and after-sales service. The company aims to serve every customer with quality products and excellent service. The company provides thoughtful services like technical consultation, installation and test-running, technical training, and maintenance. Our company is also able to design non-standard products as per customers' requests. We have exported our machines and equipment to the following countries and areas: Taiwan (CHINA), Vietnam, Thailand, Pakistan, India, Venezuela, Bolivia, Mexico, Argentina, Columbia, Australia, USA, Kenya, Ethiopia, Qatar, Egypt, etc. We are capable of providing thoughtful solutions for every individual customer based on their specific requirements, making sure that every potential customer is satisfied with our work.

1. What is the power supply of the heat exchanger making machines?

The power supply of heat exchanger making machines is to be decided by the customer's side. We are able to adjust the power supply (volt, and phase) through a transformer or of the customer's voltage directly so that the melting furnace is ready for use at the end user's site.

2. What information should the customer provide to get an accurate quotation from us?

The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output, etc.

3. What is the payment term?

The payment term is 40% down payment, and 60% before delivery (T/T mode).

4. What is the delivery time?

The delivery time of the machine is 30-60 days after receipt of down payment.
